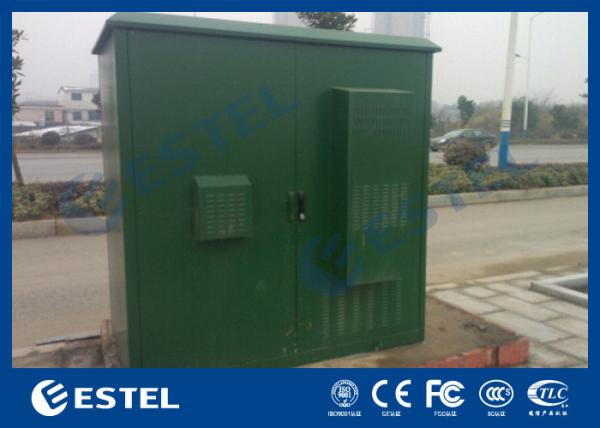

Custom Base Station Cabinet , Outdoor Battery Cabinet Anti Corrosion Powder Coating
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | Size: Custom Made |
| Brand Name: ESTEL | Structure: double wall, with insulation, sandwich structure |
| Model Number: DDTE023 | Cabinet Layout: two compartments |
| Product Name: Integrated Outdoor Telecom Cabinet | Cabinet Lock: anti-theft three point lock |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 | Protection Level: IP55 |
| Application: outdoor telecom base station | Cable Entry: at cabinet bottom |
| Material: galvanized steel | Illumination: DC48V LED lamp |
| Heat Insulation: PEF | Grounding Protection: copper bar |
| Color: green (support custom made) | Cooling: DC48V Fans and heat exchanger |
| Coating: anti-corrosion outdoor powder coating | Accessories Options: PDU, rectifier system, environment monitoring system |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, Paypal, etc |
| Supply Ability: | 5,500 sets per month |
| Delivery Time: | 15-20 working days |
| Packaging Details: | wooden case |
1. Specifications
(1) Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | Size: Custom Made |
| Layout | Two compartments |
| Equipment Installation Method | 19” standard rack and battery shelf |
| Door | With two front doors, totally two doors; with anti-theft three point lock for outdoor cabinet (support padlock) |
| Material | 1.Galvanized steel; 2.Double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with 40mm heat insulation between two walls. |
| Structure | Assembled |
| Ingress Protection | IP55 |
| Temperature Control | Cooling | DC48V Fans and heat exchanger |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C |
| Transport Temperature: -50°C ~ +70°C |
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
(2) Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set | (1) Size: Custom Made (2) Two compartment; (3) With two front doors, totally two doors; with anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls |
| 2 | Fans | 4 | PC | 12038, DC48V |
| 3 | Heat Exchanger | 1 | Set | Cooling capacity:100W/K,; Power supply: DC48V |
| 4 | Environment Monitoring Unit | 1 | Set | SM2400,1U |
| 5 | Temperature and Humidity Sensor | 2 | PC | |
| 6 | Door Sensor | 4 | PC | Each compartment includes two door sensors, one for controlling LED lamp, the other for open door alarm |
| 7 | Water Sensor | 2 | PC | |
| 8 | Smoke Sensor | 2 | PC | |
| 8 | LED Lamp | 2 | PC | DC48V |
| 9 | Power Distribution Unit | 1 | Set | Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4. Height: 4U |
| 10 | Embedded Telecom Power System (UPS) | 1 | Set | DC48V, 120A |
| 11 | Package | 1 | Set | Wooden Case |
2. Application
The DDTE023 Outdoor Telecom Enclosure is mainly used in wireless communication base station, such as 3G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
3. Features
- The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment. The protection level is IP55.
- Cooling : fans and heat exchanger
- -48V lamp is installed inside the cabinet.
- The cabinet is installed with Environment Monitoring Unit, door alarm, temperature and humidity sensor, smoke sensor, water sensor etc., which can work together to monitor the inside environment of the cabinet.
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re entrance holes individually for power cable, signal cable and optical cable.
- All the cables used in the cabinet are made from flame retardant materials.
- Cabinet size can be custom made.
4. Description
The cabinet, made of galvanized steel, is divided into equipment compartment and battery compartment. The right part of the cabinet is equipment compartment, which is separated from the battery compartment for heat insulation of the equipment space. The left compartment is battery compartment which is used for installing batteries. The cabinet body has heat insulation foam, which can keep the temperature inside the cabinet. The cabinet also has roofs which is sun proof and water proof. There’re ventilations for releasing harmful gas generated by the batteries.
4. 1 Technical specs
(1) Applicable environment conditions:
Environment temperature: -40°C ~ + 60°C
Environment humidity (RH): ≤95% (at + 40°C)
Air pressure: 70kPa ~ 106kPa
(2) Material: hot dip galvanized steel
(3) Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
(4) Cabinet load bearing: ≥600kg
(5) Ingress Protection: IP55
(6) Flame retardance: comply with GB5169.7 test A
(7) Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2X104M/500V(DC).
(8) Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
(9) Mechanical strength: each surface can bear upright pressure＞980N; after the door is open, its outer end can bear upright pressure ＞200N.
4.2 Cabinet Door and Lock

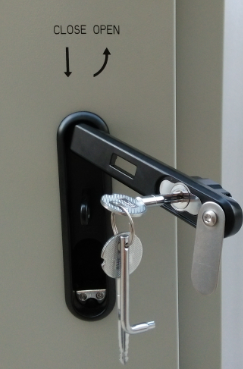

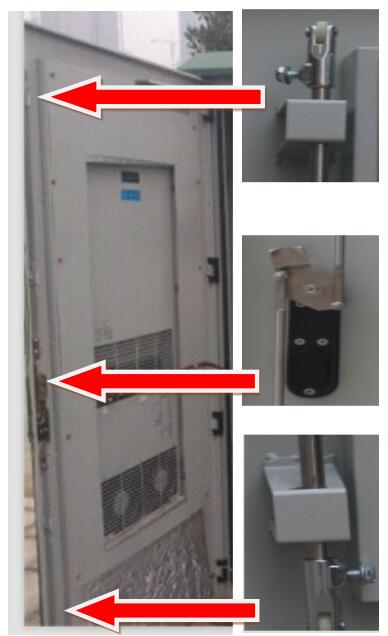

The cabinet includes two front doors. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.
4.2.1 Door lock theft proof design
- Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
4.3 Cable Inlet

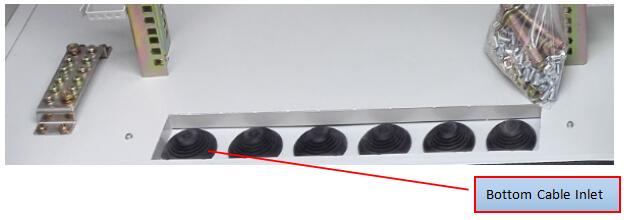

Feeder cable and other external cables all use bottom wiring method.
4.4 Grounding Protection

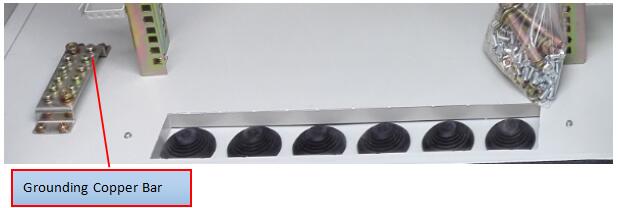

- The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
- The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
- Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.
4.5 Connection and Fastening
- Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
- Door hinges use inner hinge mode.
4.6 Appearance and Surface Treatment
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
