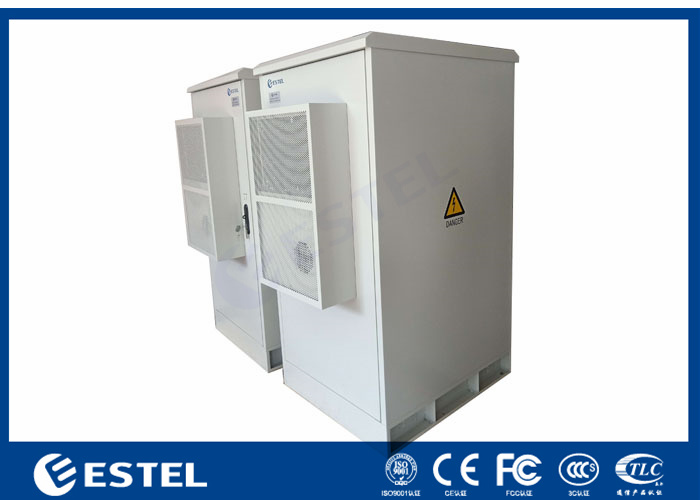

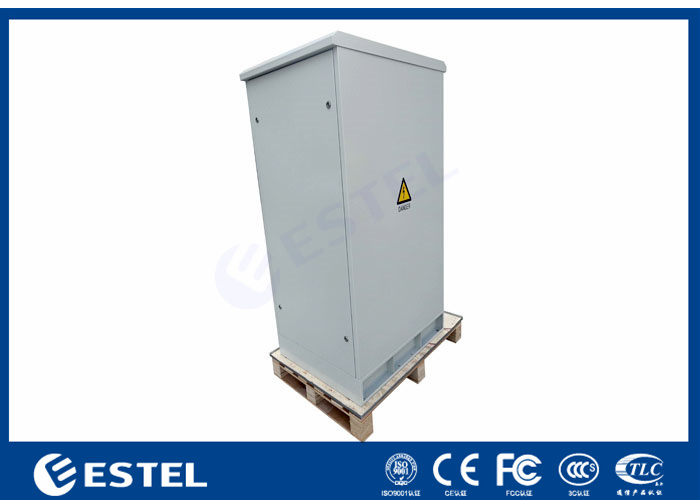

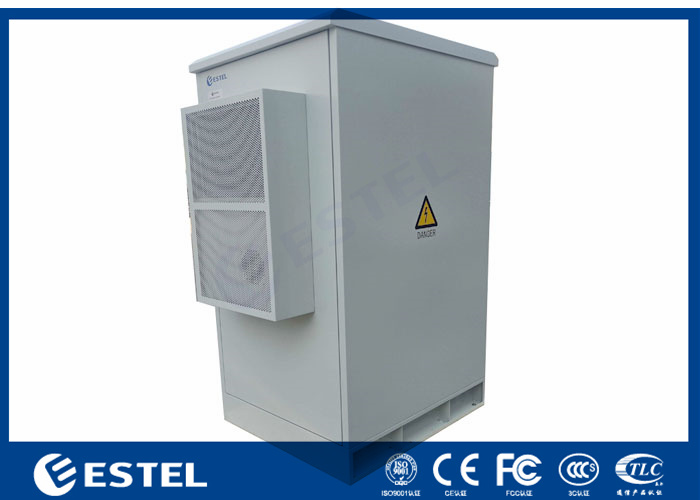

20U 1.2m Height Floor Mounted Outdoor Enclosure 19 Inch Rack Equipment Cabinet
1.20U telecom Cabinet Features
● Heavy duty outdoor construction
● 20 rack units (RU), standard 19” rail
● Front access (rear access optional)
● Anti-theft three-point locking system, support padlock
● Outdoor powder coating, anti-corrosion
● Standard Color: light grey, RAL7035. Custom color available
● Cable inlet at cabinet bottom
● Include grounding bar
● Include door stopper
● Optional cooling solutions: fan ventilation, air conditioner, heat exchanger
2.Cabinet IP Grade
-Ingress protection is IP55, we can provide IP65 cabinet based on client’s actual.
-Made of heavy gauge galvanized material.
-Front door and rear door use standard three-point anti-theft lock. The door lock forms an upper, middle and lower three-point locking structure. For the cabinet with large area, the locking effect is safe and reliable.
-Standard 19 inch mounting posts.
-Doors secured with steel dead locking system lock (support PADLOCK)
-It is installed in the ground root or above ground column base system by "direct burying"
-Cable entry is via the base as standard with side or roof entry available upon request.
3. Cabinet Instructions
For those who need more than just standard cabinet, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions. It provides a secure,climate controlled environment for any electronic equipment.
This cabinet is 1200mm High and 600mm Wide and 600mmDeep. This cabinet is the ultimate choice for outdoor racking requirements.
- Standard Compliance Table
| Standard | Description |
| GB/T 17626.7-1998 | Electromagnetic compatibility |
| GB4706.1 | Safety of household appliance and electrical appliance with similar use. |
| GB4798.1 | Environmental conditions existing in the application for electric and electronic products - storage |
| GB4798.2 | Environmental conditions existing in the application for electric and electronic products - transportation |
| GB4798.3 | Environmental conditions existing in the application for electric and electronic products - usage |
- Cabinet Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET6060120-EQ |
| Protection Level | IP55 |
| External Dimension | H1200mm×W600mm×D600mm |
| Internal Dimension | 19inch ,20U |
| Material | Galvanized steel, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm |
| Insulation | PEF |
| Coating | Polyester powder coating |
| Color | RAL7035 |
| Lock | Anti-theft three-point locking system |
| Hinge | Inner hinge |
| Installation Options | Floor mounted |
| Cable Routing | Cable in and out from the bottom of cabinet |
| Maintenance | One front door, one rear door |

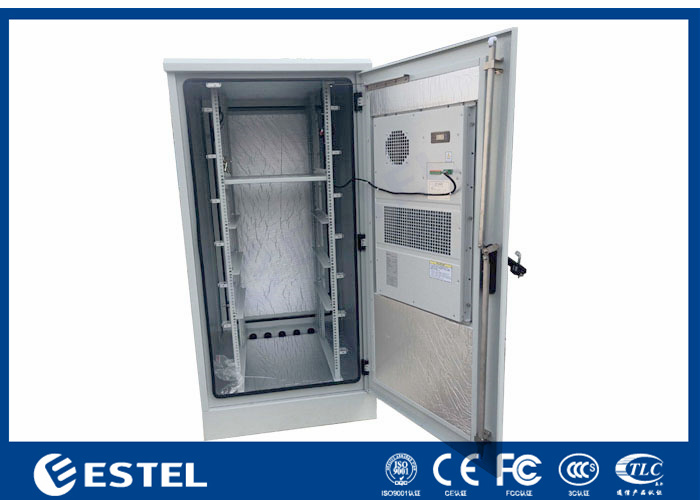

| Cooling | AC air conditioner | 500W 220VAC 50Hz , install on the front door |
| Others | LED lamp |
| The entrance guard switch |
| Environment | Working Temperature | -40℃~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ |
| Working Humidity | 5%~95%(No condensation) |
| Working Altitude | 0~4000 meters |
Air conditioner Datasheet:
1) Product introduction
2) The air conditioner is one kind of refrigeration product self-developed for cabinet. It is applicable in the place where the cabinet internal heat is very large, the internal electronic equipment is sensitive to the environment temperature and which should be isolated internally and externally completely. This product has multiple functions, high reliability, and has the feature that it can start to work without complex debugging after powering.

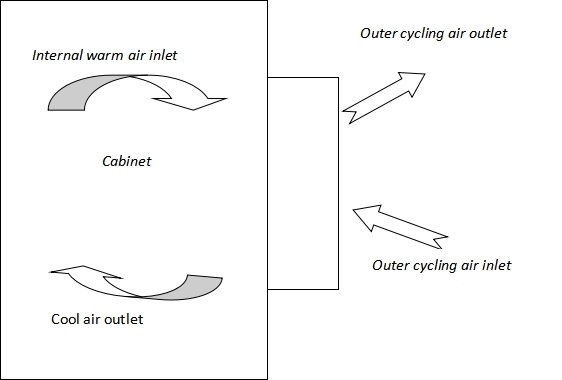

3) The fan in the internal cycle air path absorbs the hot air from the upside to make air heat exchange by evaporator fins, and sends the cooled air from the downside of the air conditioner. By so, the air in cabinet can cycle to achieve the purpose of lowering the temperature. Meanwhile, The fan in the external cycle air path absorbs the external cold air from the downside, and discharges the hot air from the upside after heat exchange.
4)
5) Air conditioner technology parameters

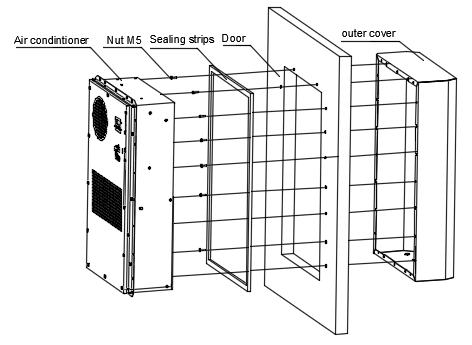

6) Installation diagram
8. Various cooling system for your choice
- Natural ventilation cooling system
- DC/AC Air conditioner cooling system
- Heat exchanger cooling system
- Fan cooling system
- TEC cooling system
P 9. Packing and Shipping
Cabinet package use free fumigation woodcase which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
